Hadoop源码学习：NameNode启动

启动流程

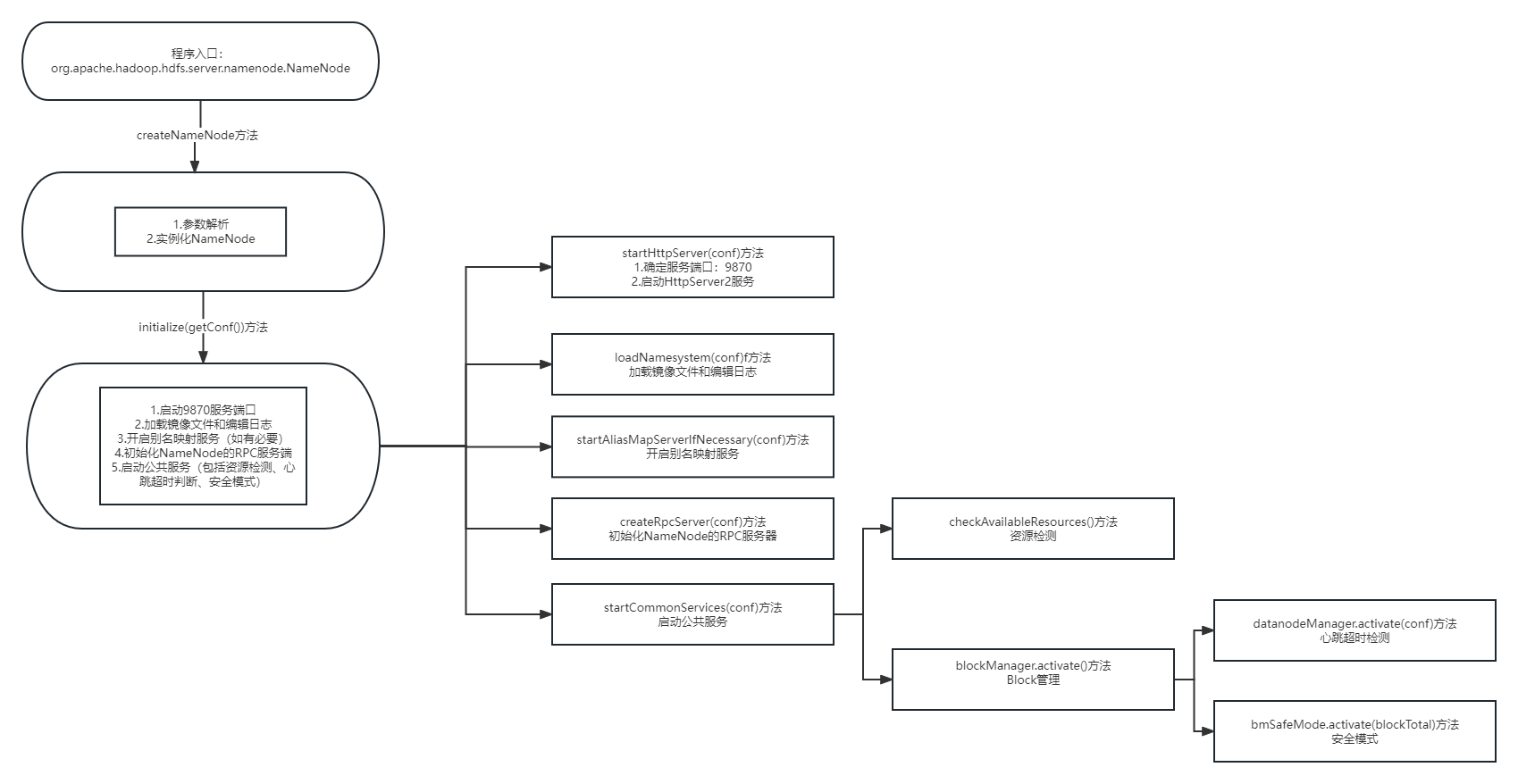

流程图

根据流程图，总结流程：

1. 启动9870端口服务
2. 加载镜像文件和编辑日志
3. 开启别名映射服务（如有必要）
4. 初始化NameNode的RPC服务端
5. 启动公共服务（NameNode启动资源检查、NameNode对心跳超时判断、安全模式）

源码解析

程序入口

找到程序入口：org.apache.hadoop.hdfs.server.namenode.NameNode

  // 进入main方法
  public static void main(String[] argv) throws Exception {
      if (DFSUtil.parseHelpArgument(argv, USAGE, System.out, true)) {
          System.exit(0);
      }

      try {
          StringUtils.startupShutdownMessage(NameNode.class, argv, LOG);
          NameNode namenode = createNameNode(argv, (Configuration)null);
          if (namenode != null) {
              namenode.join();
          }
      } catch (Throwable var2) {
          LOG.error("Failed to start namenode.", var2);
          ExitUtil.terminate(1, var2);
      }

  }

// 进入createNameNode方法，主要进行参数解析和实例化NameNode。
public static NameNode createNameNode(String argv[], Configuration conf)
    throws IOException {
  LOG.info("createNameNode " + Arrays.asList(argv));
  if (conf == null)
    conf = new HdfsConfiguration();
  // Parse out some generic args into Configuration.
  GenericOptionsParser hParser = new GenericOptionsParser(conf, argv);
  argv = hParser.getRemainingArgs();
  // Parse the rest, NN specific args.
  StartupOption startOpt = parseArguments(argv);
  if (startOpt == null) {
    printUsage(System.err);
    return null;
  }
  setStartupOption(conf, startOpt);

  boolean aborted = false;
  switch (startOpt) {
  case FORMAT:
    aborted = format(conf, startOpt.getForceFormat(),
        startOpt.getInteractiveFormat());
    terminate(aborted ? 1 : 0);
    return null; // avoid javac warning
  // TODO
  default:
    DefaultMetricsSystem.initialize("NameNode");
    // 从这里进入查看。
    return new NameNode(conf);
  }
}

initialize(getConf())方法（核心源码）

进入new NameNode(conf)，找到initialize(getConf())方法。

protected void initialize(Configuration conf) throws IOException {
    if (conf.get(HADOOP_USER_GROUP_METRICS_PERCENTILES_INTERVALS) == null) {
      String intervals = conf.get(DFS_METRICS_PERCENTILES_INTERVALS_KEY);
      if (intervals != null) {
        conf.set(HADOOP_USER_GROUP_METRICS_PERCENTILES_INTERVALS,
          intervals);
      }
    }

    UserGroupInformation.setConfiguration(conf);
    loginAsNameNodeUser(conf);

    NameNode.initMetrics(conf, this.getRole());
    StartupProgressMetrics.register(startupProgress);

    pauseMonitor = new JvmPauseMonitor();
    pauseMonitor.init(conf);
    pauseMonitor.start();
    metrics.getJvmMetrics().setPauseMonitor(pauseMonitor);

    if (NamenodeRole.NAMENODE == role) {
      // 启动HttpServer2服务，确定9870端口
      startHttpServer(conf);
    }

    // 加载镜像文件和编辑日志
    loadNamesystem(conf);
    // 开启别名映射服务（如有必要）
    startAliasMapServerIfNecessary(conf);
    // 创建RPC服务器
    rpcServer = createRpcServer(conf);

    initReconfigurableBackoffKey();

    if (clientNamenodeAddress == null) {
      // This is expected for MiniDFSCluster. Set it now using
      // the RPC server's bind address.
      clientNamenodeAddress =
          NetUtils.getHostPortString(getNameNodeAddress());
      LOG.info("Clients are to use " + clientNamenodeAddress + " to access"
          + " this namenode/service.");
    }
    if (NamenodeRole.NAMENODE == role) {
      httpServer.setNameNodeAddress(getNameNodeAddress());
      httpServer.setFSImage(getFSImage());
    }

    // 启动公共服务（包括资源检查、心跳超时判断、安全模式）
    startCommonServices(conf);
    startMetricsLogger(conf);
  }

启动9870服务端口

源码如下：

private void startHttpServer(final Configuration conf) throws IOException {
  // 根据getHttpServerBindAddress来确定服务端口号：9870
  httpServer = new NameNodeHttpServer(conf, this, getHttpServerBindAddress(conf));
  // 启动HttpServer2服务
  httpServer.start();
  httpServer.setStartupProgress(startupProgress);
}

加载镜像文件和编辑日志

源码如下：

protected void loadNamesystem(Configuration conf) throws IOException {
   this.namesystem = FSNamesystem.loadFromDisk(conf);
 }

开启别名映射服务

源码如下：

private void startAliasMapServerIfNecessary(Configuration conf)
    throws IOException {
  if (conf.getBoolean(DFSConfigKeys.DFS_NAMENODE_PROVIDED_ENABLED,
      DFSConfigKeys.DFS_NAMENODE_PROVIDED_ENABLED_DEFAULT)
      && conf.getBoolean(DFSConfigKeys.DFS_PROVIDED_ALIASMAP_INMEMORY_ENABLED,
          DFSConfigKeys.DFS_PROVIDED_ALIASMAP_INMEMORY_ENABLED_DEFAULT)) {
    levelDBAliasMapServer = new InMemoryLevelDBAliasMapServer(
        InMemoryAliasMap::init, namesystem.getBlockPoolId());
    levelDBAliasMapServer.setConf(conf);
    levelDBAliasMapServer.start();
  }
}

初始化NameNode的RPC服务端

源码如下：

/**
 * Create the RPC server implementation. Used as an extension point for the
 * BackupNode.
 */
protected NameNodeRpcServer createRpcServer(Configuration conf)
    throws IOException {
  return new NameNodeRpcServer(conf, this);
}

启动公共服务（资源检测、心跳超时判断、安全模式）

void startCommonServices(Configuration conf, HAContext haContext) throws IOException {
  this.registerMBean(); // register the MBean for the FSNamesystemState
  writeLock();
  this.haContext = haContext;
  try {
    nnResourceChecker = new NameNodeResourceChecker(conf);
    // 检测资源
    checkAvailableResources();
    assert !blockManager.isPopulatingReplQueues();
    StartupProgress prog = NameNode.getStartupProgress();
    prog.beginPhase(Phase.SAFEMODE);
    long completeBlocksTotal = getCompleteBlocksTotal();
    prog.setTotal(Phase.SAFEMODE, STEP_AWAITING_REPORTED_BLOCKS,
        completeBlocksTotal);
    // blockManager：心跳超时判断，安全模式
    blockManager.activate(conf, completeBlocksTotal);
  } finally {
    writeUnlock("startCommonServices");
  }

  registerMXBean();
  DefaultMetricsSystem.instance().register(this);
  if (inodeAttributeProvider != null) {
    inodeAttributeProvider.start();
    dir.setINodeAttributeProvider(inodeAttributeProvider);
  }
  snapshotManager.registerMXBean();
  InetSocketAddress serviceAddress = NameNode.getServiceAddress(conf, true);
  this.nameNodeHostName = (serviceAddress != null) ?
      serviceAddress.getHostName() : "";
}

NameNode启动资源检测

默认元数据存储空间100M。
源码如下：

/**
 * Perform resource checks and cache the results.
 */
void checkAvailableResources() {
  long resourceCheckTime = monotonicNow();
  Preconditions.checkState(nnResourceChecker != null,
      "nnResourceChecker not initialized");
  hasResourcesAvailable = nnResourceChecker.hasAvailableDiskSpace();
  resourceCheckTime = monotonicNow() - resourceCheckTime;
  NameNode.getNameNodeMetrics().addResourceCheckTime(resourceCheckTime);
}

Block块管理：blockManager

这里包括：
NameNode对心跳超时判断
安全模式

public void activate(Configuration conf, long blockTotal) {
  pendingReconstruction.start();
  // 心跳超时检测
  datanodeManager.activate(conf);
  this.redundancyThread.setName("RedundancyMonitor");
  this.redundancyThread.start();
  storageInfoDefragmenterThread.setName("StorageInfoMonitor");
  storageInfoDefragmenterThread.start();
  this.blockReportThread.start();
  mxBeanName = MBeans.register("NameNode", "BlockStats", this);
  // 安全模式
  bmSafeMode.activate(blockTotal);
}

NameNode对心跳超时判断

判断DataNode心跳超时默认时间：10min+30s
源码如下：

@Override
public void run() {
  while(namesystem.isRunning()) {
    restartHeartbeatStopWatch();
    try {
      final long now = Time.monotonicNow();
      if (lastHeartbeatCheck + heartbeatRecheckInterval < now) {
        heartbeatCheck();
        lastHeartbeatCheck = now;
      }
      if (blockManager.shouldUpdateBlockKey(now - lastBlockKeyUpdate)) {
        synchronized(HeartbeatManager.this) {
          for(DatanodeDescriptor d : datanodes) {
            d.setNeedKeyUpdate(true);
          }
        }
        lastBlockKeyUpdate = now;
      }
    } catch (Exception e) {
      LOG.error("Exception while checking heartbeat", e);
    }
    try {
      Thread.sleep(5000);  // 5 seconds
    } catch (InterruptedException ignored) {
    }
    // avoid declaring nodes dead for another cycle if a GC pause lasts
    // longer than the node recheck interval
    if (shouldAbortHeartbeatCheck(-5000)) {
      LOG.warn("Skipping next heartbeat scan due to excessive pause");
      lastHeartbeatCheck = Time.monotonicNow();
    }
  }
}

安全模式

阈值：0.999
源码如下：

void activate(long total) {
  assert namesystem.hasWriteLock();
  assert status == BMSafeModeStatus.OFF;

  startTime = monotonicNow();
  setBlockTotal(total);
  if (areThresholdsMet()) {
    boolean exitResult = leaveSafeMode(false);
    Preconditions.checkState(exitResult, "Failed to leave safe mode.");
  } else {
    // enter safe mode
    status = BMSafeModeStatus.PENDING_THRESHOLD;
    initializeReplQueuesIfNecessary();
    reportStatus("STATE* Safe mode ON.", true);
    lastStatusReport = monotonicNow();
  }
}
